At Ceta Precision Engineering we have undertaken a continuous programme of investment in modern manufacturing techniques, updated machinery, equipment and quality assurance procedures, aimed at developing the various components of our business.

Alternatively, the Plant List may be downloaded in PDF format:

Plant List



MILLING

Milling at Ceta Precision Engineering:

  • Hurco VM30i Machining Centre
  • 1368 x 508 Table with 1270 x 508 Travels
  • 10,000 RPM
  • Powerful MAX 5 Winmax Control
  • 20ATC
  • CTS
  • RENISHAW TOOL   PART PROBING
  • 10000 RPM
  • HAAS VF4 – 20HP, TABLE SIZE 1300 X 510 4TH AXIS, 2005
  • HAAS VF4 – 30HP, TABLE SIZE 1270 X 508 4TH AXIS, 2015
  • HAAS VF2, TABLE SIZE 800 X 350, 2008
  • HAAS VF1, TABLE SIZE 570 X 350, 2000
  • HAAS MINI MILL, TABLE SIZE 600 X 300, 2006
  • BRIDGEPORT VMC 600, TABLE SIZE 600 X 400 4TH AXIS, 1998
  • BRIDGEPORT VMC 460, TABLE SIZE 460 X 300, 1996
  • BRIDGEPORT EASYTRAC

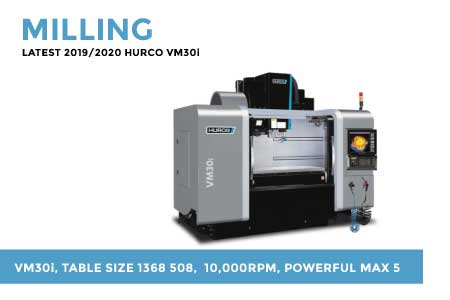

New Plant: Hurco VM30i Machining Centre, which is the latest addition to our comprehensive milling section.

TURNING

Turning at Ceta Precision Engineering:

  • Lynx 2100 Series CNC Lathe
  • 6/8- Inch Global Compact Turning Centre
  • XYZ 1330 Trainer Lathe
  • Machine 3 is a manual lathe and supports our CNC lathe department with certain operations that can be easier on this type machine, also we have taken on a new guy out of Uni so the machine is also serving as a training aid.
  • HAAS TL3, SPINDLE DIA 70MM - 500MM DIA CAPACITY, 2014
  • HAAS TL3, SPINDLE DIA 70MM – 500MM DIA CAPACITY, 2005
  • COLCHESTER COMBI, SPINDLE DIA 50MM – 400 MM DIA CAPACITY, 2001
  • PUMA 8HC-3A, SPINDLE DIA 50MM – BAR FEED, 1997 ('C' AXIS DRIVEN TOOLING)
  • PUMA 8S, SPINDLE DIA 50MM – BAR FEED, 1998
  • PUMA LYNX,SPINDLE DIA 50MM – 250MM CAPACITY, 1998
  • PUMA LYNX,SPINDLE DIA 50MM – 250MM CAPACITY, 1999
  • NOMURA, SLIDING HEAD, SPINDLE DIA 13MM, BAR FEED 1996

GRINDING

Grinding at Ceta Precision Engineering:

  • JONES & SHIPMAN, HORIZONTAL
  • JONES & SHIPMAN, CYLINDRICAL

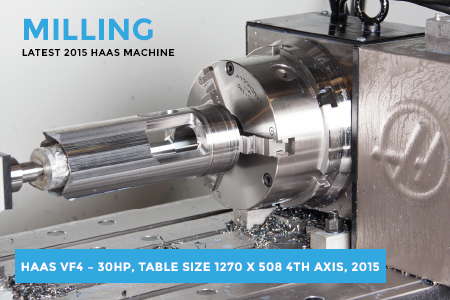

Ceta Precision Engineering installed the 30HP Haas VF4 vertical machining centre. The VFL has a table size of 1270mm x 508mm and has a 4th axis drive unit fitted for rotational milling and drilling requirements.

WIRE EROSION

Wire Erosion at Ceta Precision Engineering:

  • FANUC, TABLE SIZE 300 X 200 X 200

FURNACE

The furnace at Ceta Precision Engineering:

  • WILD BARFIELD, (CAPACITY 200MMX 200MM X 500MM)

TAPPING, FITTING, ASSEMBLY AND FLY PRESS WORK

We carry out all the above on site at Ceta Precision Engineering Ltd

  • HAAS VF4 – 20HP, TABLE SIZE 1300 X 510 4TH AXIS, 2005

INSPECTION

At Ceta Precision Engineering:

  • FARO ARM, ABERLINK AXION, MITUTOYO DIGITAL SHADOWGRAPH, PRO PEN ENGRAVING AND AVERY DENNISON HARDNESS TESTER

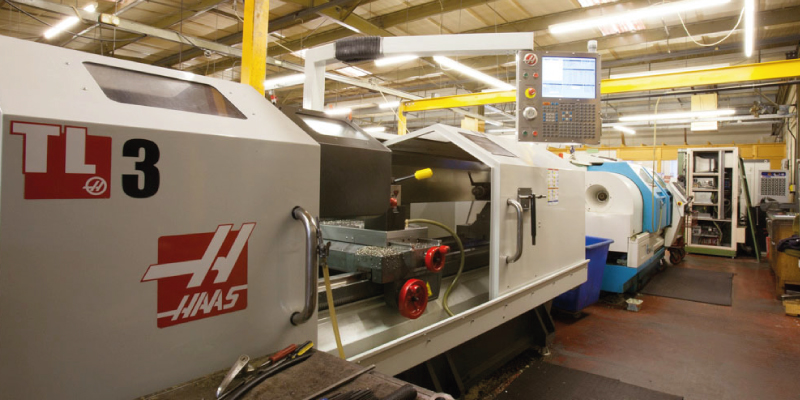

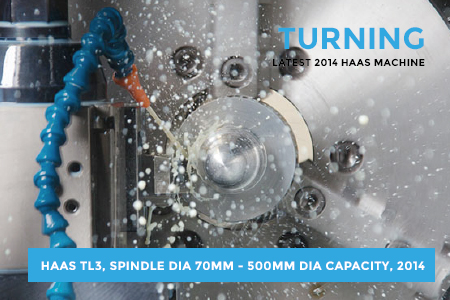

The Haas TL3 tool room lathe was added to out turning department in 2014. The TL3 adds to our capabilities for larger turned parts. The machine is excellent for quick set one-off parts to larger bulk quantities.

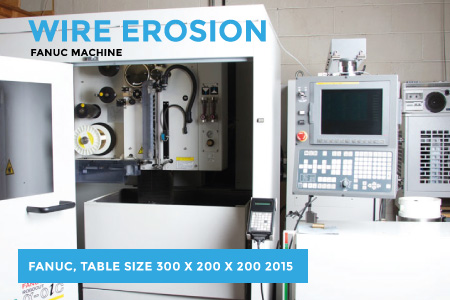

Wire Erosion is taken care of by the FANUC with a table size of 300 x 200 x 200.
